Air-Cooled Laser Welding Machine All-in-One
Dimension：411.5*636.25*630mm
Weight：45KG/47KG/50KG/53KG
Application: Widely used in the welding and forming of various sheet metal parts, as well as in advertising signs, commercial kitchen equipment, stoves, grill carts, food service carts, doors and windows, frames, metal furniture, lamp shades, power distribution boxes, fire extinguisher boxes, pipelines, and more.
Industrial integrated laser welder: efficient, precise, and flexible. 1064nm laser + 50um fiber, 1-8mm adjustable weld width. Four power levels cover 0.5-7mm all metals, continuous/spot modes. Wheeled design with 10m fiber for easy mobility. Intelligent cooling & multi-gas support for stable operation-ideal for industrial use.
Performance Features
1.Power options: 800W/1200W/1500W/2000W, welding thickness 0.5-7mm for all metal thickness needs.
2.Switch between continuous & spot welding; speed adjustable 0-120mm/s for both efficiency & precision.
3.Integrated wheeled design, 45-53KG, built-in 10m fiber optic cable, flexible movement for outdoor & large equipment repair.
4.Works with carbon steel, stainless steel, galvanized sheet, aluminum alloy; supports N₂/Ar/compressed air; 220V wide voltage & smart cooling for stable operation.
Product Specifications
|
Laser Power |
800W |
1200W |
1500W |
2000W |
|
Laser Wavelength |
1064nm |
|||
|
Working Mode |
Continuous Welding or Spot Welding |
|||
|
Fiber Length |
10 m (customize) |
|||
|
Diameter Of Fiber Core |
50μm |
|||
|
Power Range |
10-100% |
|||
|
Auxiliary Gas |
Nitrogen / Argon / Compressed Air |
|||
|
Suitable Material |
Carbon steel, stainless steel, galvanized sheet, Aluminum, etc |
|||
|
Power Supply |
220V±10% ; 50/60 HZ AC |
|||
|
Welding Speed |
0-120mm/s |
|||
|
Welding Thickness |
0.5-3mm |
0.5-5mm |
0.5-6mm |
0.5-7mm |
|
Weld Bead Width |
1~8mm adjustable |
|||
|
Cooling Type |
Air cooling |
|||
|
Dimension |
411.5*636.25*630(mm) |
|||
|
Weight |
45KG |
47KG |
50KG |
53KG |
Application Scope
We are a manufacturer with 16 years of experience in the production and manufacturing of laser equipment. We are an original source factory, so you don't need to worry about our quality and service.
FAQ
Q: What's the advantage of laser welding?
A: Less requirement to operator skills, less material distortion, no post-processing required, less after-processing to material, can realize automatic production.
Q: Is laser welder harmful to human body?
A: 1064~1080nm laser is sensitive to metals but won't do harm to human skin. Yet you must wear laser goggles for eyes protection. If your material is not clean and generates a lot of smoke/dusts during laser processing, we also suggest you to wear a mask. For the user of fiber laser welder, wearing heat-proof gloves can avoid hurt from hot metals.

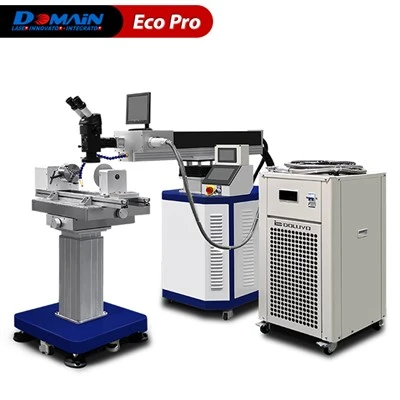

Hot Tags: air-cooled laser welding machine all-in-one, China air-cooled laser welding machine all-in-one manufacturers, suppliers, factory, Air Cooled Handheld Laser Welder, Built in Water Cooled Vertical Jewelry Spot Welder, Cantilevered YAG Laser Welding Machine, Metal Signs Letters YAG Laser Welder Dual Output, Water Cooled FloorType Jewelry Spot Welder, YAG Dual Output Mold Welding Machine
